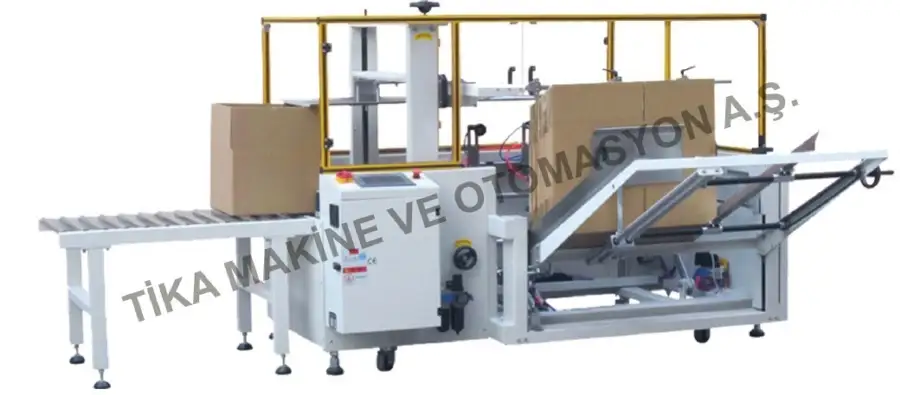

Automatic Case Erector
A magazine-fed case erector that automatically forms flat boxes and tapes their bottom flaps.
- Multi-box magazine feed
- Automatic erecting and bottom taping
- Glue or staple option
- Italian taping head
Dimensions, capacity and equipment are determined by your product; technical values may vary depending on the options selected.
Overview
Flat, unformed cases or boxes are loaded in bulk into the machine's magazine, then automatically erected with the bottom flaps taped shut. A glue-spray or metal-staple unit option is available on request.
Technical specifications
| Min. box size | W 20 cm x L 20 cm x H 18 cm |
|---|---|
| Max. box size | W 45 cm x L 65 cm x H 45 cm |
| Empty box capacity | Approx. 150 units (variable) |
| Output | 8-12 units/minute (varies by size) |
| Sealing | Tape (standard), glue / staple optional |
| Tape size used | Width 50-70 mm, length up to 800 m |
| Taping head | Italian (high efficiency) |
| Tape drive | Side belts |
| Control | PLC control unit |
| Display | LCD |
| Speed | Standard |
| Taping | Bottom only |
| Motion | Pneumatic (adjustable valves) |
| Machine dimensions | W 1800 mm x L 2000 mm x H 1400 mm |
| Weight | 400 kg |
| Transport | Braked, mark-free polyurethane casters |
| Power supply | 220 V, 50-60 Hz |
| Air requirement | 6-8 bar |
| Warranty | 2 years mechanical, 1 year electronic |
Video
Request a quote
Share your product and expected capacity, and we'll get back to you with a suitable configuration and price.
