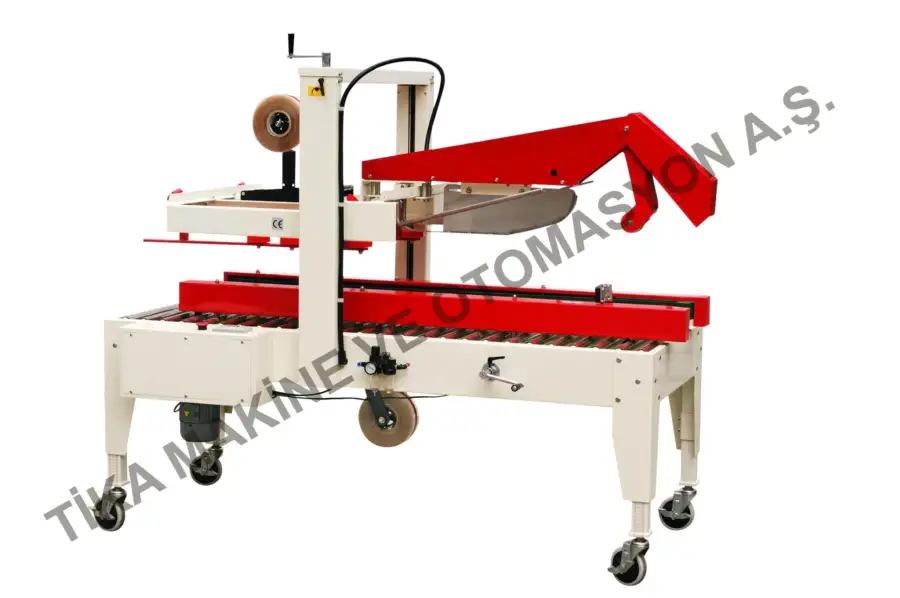

Automatic Case Closer
A machine that automatically closes and tapes top flaps, integrable into case-handling lines.
- Automatic top-flap closing
- Line integration
- Glue or staple option
- Domestic or imported supply
Dimensions, capacity and equipment are determined by your product; technical values may vary depending on the options selected.
Overview
This machine automatically closes the top flaps of a case; taping follows as a standard step. It can be integrated into case-handling lines and runs at high efficiency with conveyor systems. A glue-spray or metal-staple unit option is available on request.
Available as domestically manufactured or imported equipment.
Technical specifications
| Min. box size | W 15 cm x L 20 cm x H 18 cm |
|---|---|
| Max. box size | W 42 cm x L 60 cm x H 50 cm |
| Output | 8-12 units/minute (varies by size) |
| Sealing | Tape (standard), glue / staple optional |
| Tape size used | Width 50-70 mm, length up to 800 m |
| Taping head | Italian (high efficiency) |
| Case motion | Side belts |
| Speed | Standard |
| Taping | Top and bottom taping heads |
| Motion | Rear short-flap closing arm (pneumatic) |
| Machine dimensions | W 800 mm x L 1600 mm x H 1400 mm |
| Weight | 300 kg |
| Transport | Braked, mark-free polyurethane casters |
| Power supply | 220 V, 50-60 Hz |
| Air requirement | 6-8 bar |
| Warranty | 2 years mechanical, 1 year electronic |
Request a quote
Share your product and expected capacity, and we'll get back to you with a suitable configuration and price.
