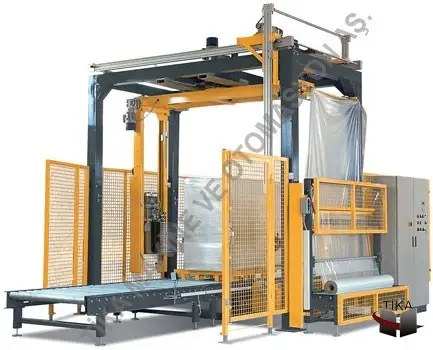

Fully Automatic Pallet Stretch Wrapping Lines
Labor-free, high-capacity stretch wrapping lines built for full conveyor integration.
- Full conveyor integration
- No manual labor required
- Automatic film tie-off and cutting
- Engineered per project
Dimensions, capacity and equipment are determined by your product; technical values may vary depending on the options selected.
Overview
Built to operate as part of conveyor-integrated lines, these custom-engineered machines require no manual labor and deliver high throughput. Conveyor capacity and dimensions are designed per project.
They work fully integrated with the infeed and outfeed conveyors.
Technical specifications
| Production capacity | 50-60 units/hour |
|---|---|
| Turntable diameter | 1650 mm (optional) |
| Body height | 3000 mm (optional) |
| Net wrapping height | 2800 mm (optional) |
| Load capacity | 2000 kg (optional) |
| Infeed conveyor | 2000 mm (optional) |
| Outfeed conveyor | 2000 mm (optional) |
| Load return | Turning conveyor |
| Automatic film tie-off | Yes |
| Automatic film cutting | Yes |
| Film sealing | Yes |
| Turntable drive | Gear drive |
| Control | PLC, Turkish menu (standard/optional) |
| Display | LCD |
| Speed | Electronic control |
| Top/bottom wrap count | Adjustable |
| Start/stop soft ramp | Adjustable |
| Pre-stretch | Mechanical, 300% stretch motor (optional) |
| Height detection | Standard |
| Transport | Forklift-compatible transport channels |
| Power supply | 220 V, 50-60 Hz |
| Machine weight | 2000 kg (varies by size) |
| Warranty | 2 years mechanical, 1 year electronic |
| Made in | Turkey |
Request a quote
Share your product and expected capacity, and we'll get back to you with a suitable configuration and price.
