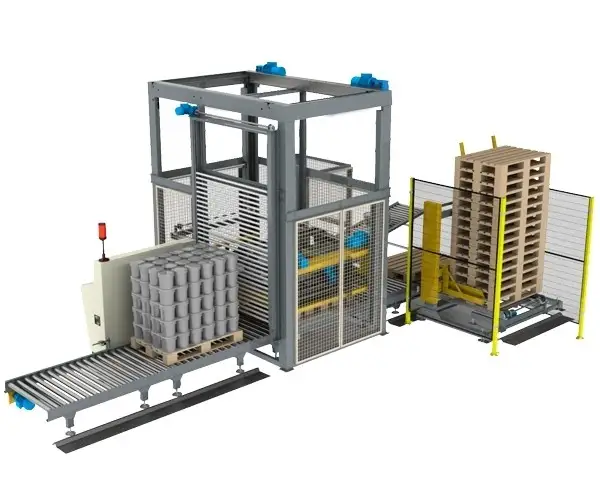

Cartesian Palletizing Robots
4-axis cartesian palletizing robots available with servo or AC drive systems.
- 4-axis motion
- Servo or AC drive options
- Alternative to robotic-arm palletizing
- Custom-designed per facility
Dimensions, capacity and equipment are determined by your product; technical values may vary depending on the options selected.
Overview
As pallet-based transport and storage systems have advanced, palletizers have become a priority for many facilities. Considered an alternative to articulated robot-arm automation, cartesian robots can be custom designed to a facility's needs and operate at high efficiency.
They handle 4-axis motion with precise, controlled operation, and can be built with AC or servo drive systems depending on precision requirements.
Technical specifications
| Pallet sizes | 80x80, 80x120, 100x100, 100x120, 120x120 cm |
|---|---|
| Working height | 2800 mm (optional) |
| Capacity | Approx. 6 units/minute (variable) |
| Grippers | Vacuum / scissor gripper (variable) |
| Lifting capacity | Max. 50 kg |
| Motion | Servo / DC / AC motors, chain and screw drive (variable) |
| Footprint | Approx. 7 m² |
| Product feed | Semi- or fully automatic / conveyor |
| Safety cage | Optional |
| Power supply | 380 V |
| Air requirement | 6-8 bar |
| Warranty | 2 years mechanical, 1 year electronic |
Request a quote
Share your product and expected capacity, and we'll get back to you with a suitable configuration and price.
